KONE TRANSITMASTER™ 165 HORIZONTAL AUTOWALK
The ideal solutions for managing people flow in the most demanding environments
KONE Product Information
Description

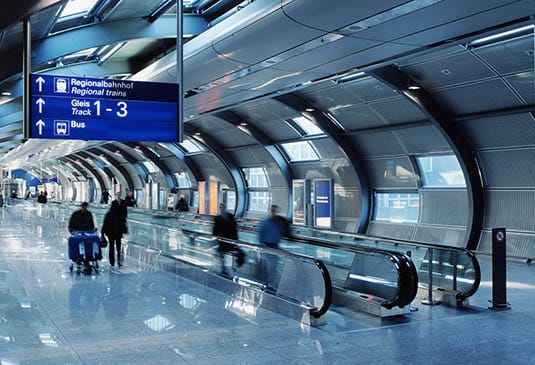

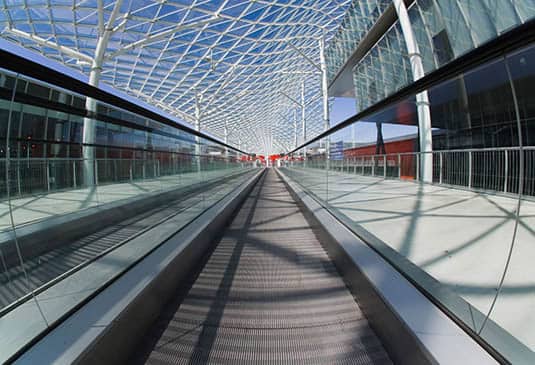

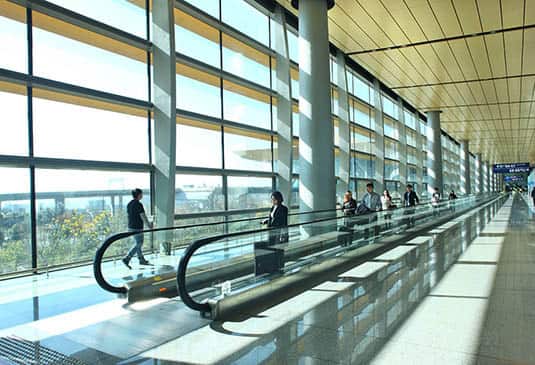

The KONE TransitMaster™ 165 is a heavy-duty autowalk primarily targeted towards the infrastructure segment with demanding traffic conditions, such as airports, railways as well as stadiums and other transit centers.
Equipment Specifications
- Operational environment: indoor, semi-outdoor
- Speed: 0.75, 0.65, 0.5 m/s; 0.4 m/s with inverter
- Inclination: 0-6º
- Pallet width: 1000, 1200, 1400 mm
- Vertical rise: up to 100 m
Travelator Safety
- Safety is the starting point for every KONE solution. TransitMaster™ 165 conforms to all local and international safety codes.
- We provide standard safety features including comb plate impact device switches and emergency stop buttons for passengers.
KONE Tools and Downloads
Travelator Options and Highlights

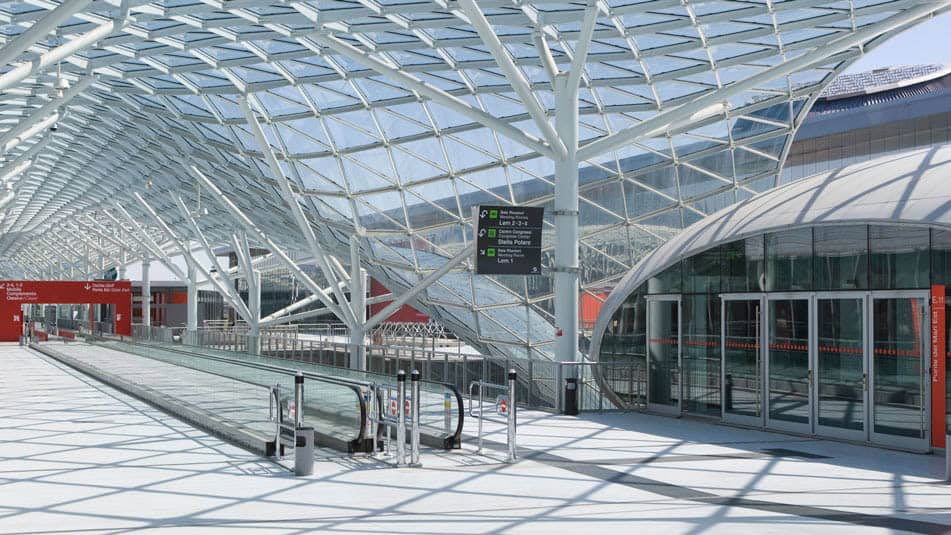

TRAVELATOR ECO-EFFICIENCY
- Eco-efficient operation can save energy by slowing down or stopping the autowalk when it is not in use or when traffic is low
- Long lasting LED lighting is up to 80% more efficient than fluorescent lighting and lasts up to 10 times longer
- Reduced autowalk speed of 0.4m/s saves energy depending on passenger traffic
- The lubrication-free step chain saves oil, reduces chain wear, and decreases fire risk

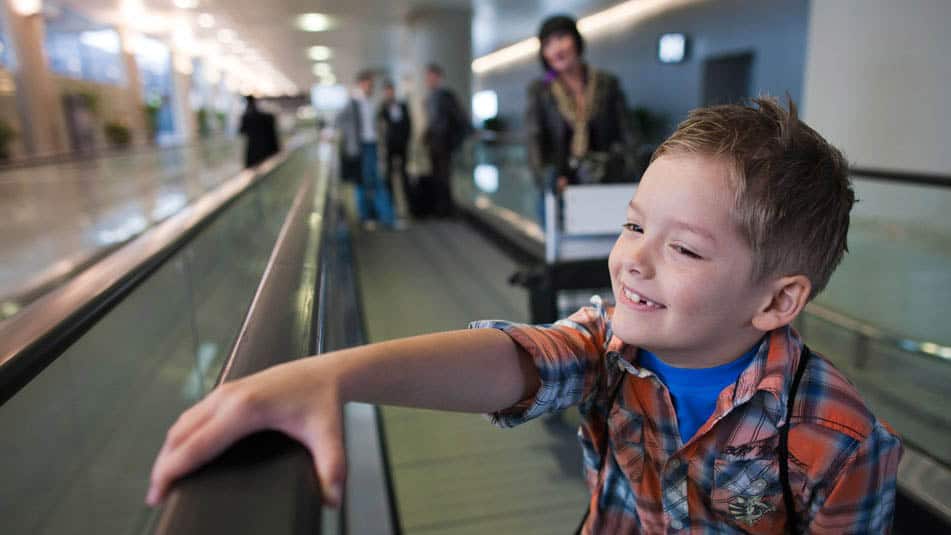

TRAVELATOR SAFETY
In addition to the standard safety features, we offer optional safety features including:
- New traffic signalization solutions and colored step demarcations for extra visual guidance
- Halogen-free, fire-resistant wiring
- Seismic movement options
- Extensive monitoring options such as KONE Remote Monitoring™ and KONE E-link™ to integrate with your building management systems

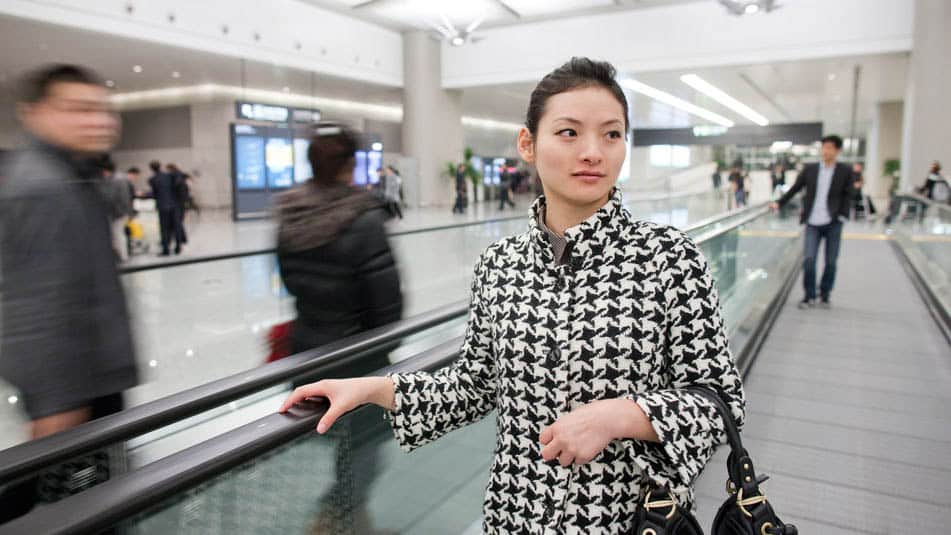

TRAVELATOR DESIGN
High quality visual design for the best possible user experience:
- Innovative and attractive lighting solutions that also improve passenger guidance and safety
- Wide range of design options to create stunning visual effects and perfectly match your building’s architecture
- High quality component finishes and a harmonized look and feel throughout the KONE product portfolio
Contact us for a detailed cost estimate
Related topics
KONE ESCALATOR & AUTOWALK PLANNING GUIDE
Our easy-to-understand planning guide gives you all the information you need when planning an escalator or walking escalator solution, including guidance on building planning regulations and property safety codes.
| Product Name | Type | Segment | Maximum Rise | Speed | Inclination | KONE TransVario Direct Drive Available | 24/7 Connected Services Available | Energy- Efficiency Class |
| KONE TravelMaster 110 | Escalator | Commercial, retail, hotel, office, multi-use, stadium, medical | 13m | 0.5 m/s | 30°, 35° | Yes | A+++ | |
| KONE TravelMaster 115 | Inclined autowalk | Commercial, retail, hotel, office, multi-use, stadium, medical | 7m | 0.5 m/s | 10°, 12° | Yes | A+++ | |
| KONE TransitMaster 120 | Escalator | Infrastructure | 20m | 0.5, 0.65, 0.75 m/s | 27.3°, 30°, 35° | Yes | A+++ | |
| KONE TransitMaster 140 | Escalator | Infrastructure | 35m | 0.5, 0.65, 0.75 m/s | 27.3°, 30° | Yes | A+++ | |
| KONE TransitMaster 165 | Horizontal Autowalk | Infrastructure | 100m | 0.5, 0.65, 0.75 m/s | 0-6° | Yes | A+++ |
